MOTOR ASSEMBLY
Click for Details

BLOWER ASSEMBLY
Click for Details

Belt
Click for Details

No Picture

Drive Pakage
Click for Details

Bearing Pillow Block
Click for Details

Busing Pulley
Click for Details

Instructions:
Roll the mouse over the number in the circle for the part number. Click on the circle for more information on that part.

163640P1
BLOWER CONDENSER 115V 60HZ
Click for Details

E-011B
CONTACTOR 2PL 24VCOIL 25
Click for Details

138490P2
RELAY TIME DELAY 120SEC OFF DELAY
Click for Details

163631P1
IMPELLER EVAPORATOR BLOWER 115-1-60
Click for Details

163776P5
CAP DUAL 35µF/10µF 370VAC
Click for Details

141927P1
GASKET RUBBER TUBULAR#209
Click for Details

168634P1
THERMOSTAT SPST 65-95F DIFF 5F
Click for Details

168781G1
COVER RACK MOUNT ECM INSUL
Click for Details

No Picture Available

COIL EVAP ECM 1000
Click for Details

163998G1
COIL COND ECM 1000
Click for Details

163693G1
COMPRESSOR ROTARY
Click for Details

163993G1
HOT GAS BYPASS VALVE/SERP LINE ECM1000/2000
Click for Details

163994G11
EVAP/FLTR LINE/VALVE TEV 3/8X3/8 ODF
Click for Details

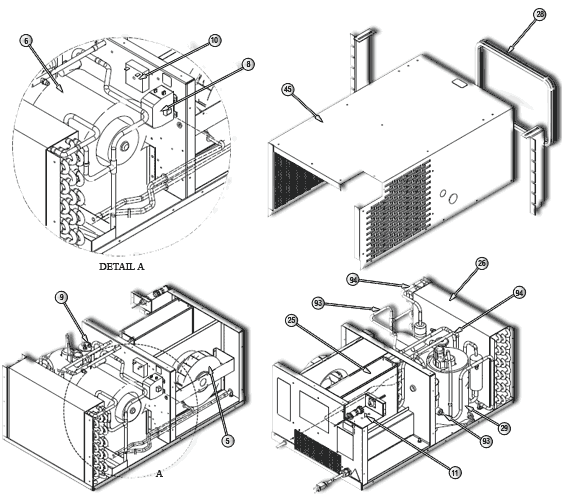

Environmental Control Module Assembly
